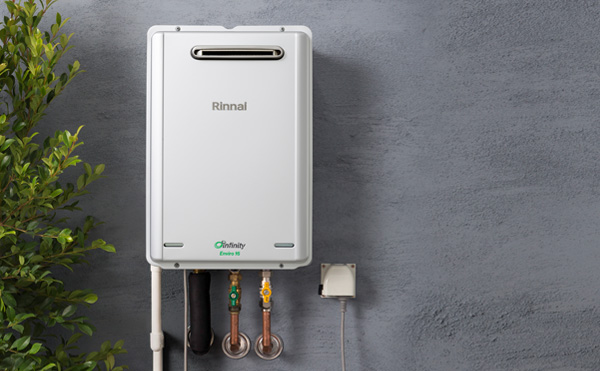

Model – Infinity 16 ENVIRO

Description

• Infinity 16 ENVIRO – This is considered Australia’s most efficient hot water system that is perfect for 1-bathroom homes (2 in warmer climates). It never runs out of hot water. Consumes considerably less gas than a standard continuous flow hot water system or gas storage tank.

• Features – It never runs out of hot water, Precise temperature control for safety and convenience, 12 Year Heat Exchanger warranty, Puretemp™ temperature stability technology, LPG or natural gas models available, Built-in condensate neutraliser kit, 50°C pre-set and 60°C models available

• Performance – Australia’s first 7-star equivalent 16-litre model, inbuilt Energy Recovery System (Condensing Technology), Uses less gas, substantially reducing running costs, Generates only 1/6th of the greenhouse gas emissions of a standard electric hot water system, Also available as a 26L or 32L model, 12-year warranty on the heat exchanger.

• Specifications –Dimensions (mm) : Height – 531, Dimensions (mm) : Width – 351, Dimensions (mm) : Depth – 191, Colours – Prestige Silver, Factory Default Temperature (Celsius) – 50 or 60, Water Pressure (kPa) : Minimum – 140, Water Pressure (kPa) : Maximum – 1000, Gas Rate Min/Max (Mj/h) : NG – 16/110, Flow Rate 25 Degrees C/Max : l/min – 16/20, Star Rating – 7.0* Equivalent, Connection Sizes Gas/Hot/Cold (mm) – 20/20/20, Status Monitor – No, Dimensions (mm) : Height Inc Brackets – 565, Dimensions (mm) : Hot Water Outlet (From Wall) – 103, Dimensions (mm) : Hot Water Outlet (Left from Centre) – 127, Dimensions (mm) : Cold Water Inlet (From Wall) – 63, Dimensions (mm) : Cold Water Inlet (Right from Centre) – 20, Dimensions (mm) : Gas Connection (From Wall) – 61, Dimensions (mm) : Gas Connection (Right from Centre) – 83, Dimensions (mm) : Condensate Outlet (From Wall) – 137, Dimensions (mm) : Condensate Outlet (From Centre) – 7, Dimensions (mm) : Gas Connection Length (From Base) – 38, Dimensions (mm) : Cold Connection Length (From Base) – 50, Dimensions (mm) : Condensate Connection (From Base) – 36, Dimensions (mm) : Condensate Fitting Diameter – 15, Weight (kg) – 16, Hot Connection Length (from base) – 39
